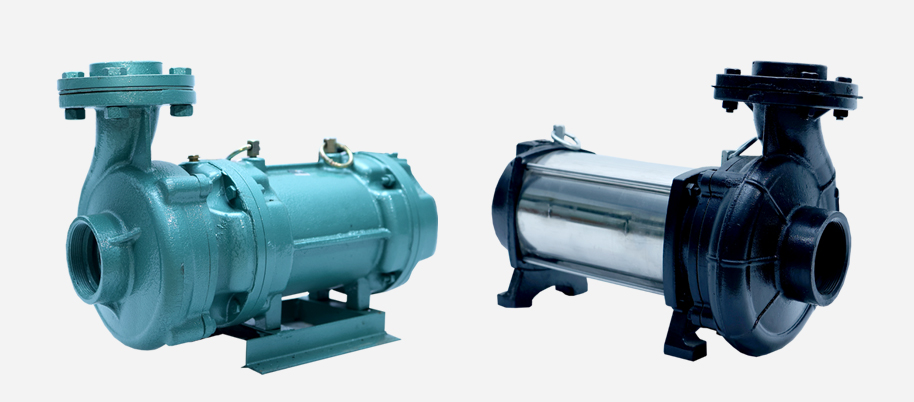

Submersible Motor

FIND SOLUTION

Range (HP)	0.5 to 15.0 HP
Type	Foot Mounted/Flange Mounted
RPM	2880, 1440, 960, 720
Power Supply	Single Phase, Three Phase
Application	Thrasher, Floor Polishing Machine, Masala Grinder, Drill Machine, Domestic Floor Mill, Wood Working Machine, Chaff Cuter, Air Compressor

- Housing: (Stator Frame) Cast Iron body with colling ribs.
- Rotor: Core of Insulated lamination with a high pressure die-cast Aluminum cage. The whole rotor assembly is dynamically balance to ensure quiet and vibration free operation. Surface of rotor is protected by and anti corrosion coating.
- Shaft: Made from high carbon steel (ie. EN-8).
- Terminal Box: Are located at right hand side of the drive end side, sealed against ingress of moisture. Also provided with conduit entry. Earthing terminal is fitted at the box-side.
